TOP END CROSSFIRE TITANIUM (Invacare®)
|
|||
 |
Invacare 2010 |
||
- Description
- Features
- Request a Quote
- Send to a Friend

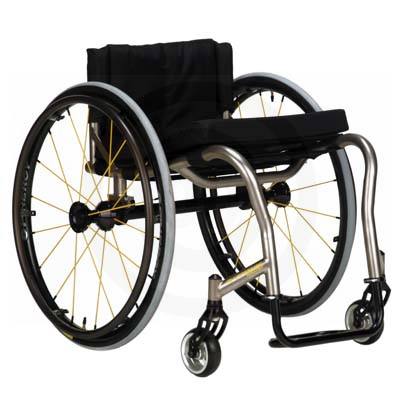

The new Top End Crossfire Titanium is as good as it gets… an ultra light weight made-to-measure titanium rigid chair with a clean, minimalist open frame design, great looks and simple adjustments which delivers long term performance.
Top End High Performance everyday chairs never compromise on weight or performance to add unneeded positioning and adjustability. The Crossfire Titanium was designed from the ground up to be a true performance rigid wheelchair with a built-in ergonomic seat positioning option and "just where you need them" adjustments. Finally, you have a better choice!
Please click on additional images, additional documents for more information or call us directly at 800-532-8677. We would love to talk to you.
Top End High Performance everyday chairs never compromise on weight or performance to add unneeded positioning and adjustability. The Crossfire Titanium was designed from the ground up to be a true performance rigid wheelchair with a built-in ergonomic seat positioning option and "just where you need them" adjustments. Finally, you have a better choice!
Please click on additional images, additional documents for more information or call us directly at 800-532-8677. We would love to talk to you.
- Front forks with inset bearings=smoother turning and no caps to fall off. Semi-pnuematic front casters.
- Smart adjustability to keep the total chair weight under 19 pounds-adjustable center of gravity, footrest height, backrest height and adjustable tension upholstery.
- High performance rear wheels equipped with high pressure tires, anodized aluminum handrims and quick release axles.
- Ultra-lightweight open frame design custom built of 3-2.5 Grade 9 titanum.
- Folding or fixed back with adjustable tension upholstery.
Specifications
- Back angle: Back angle is adjustable on folding back with 5 settings. See order form for fixed back angles available.
- Back height: Adjustable (8"-11", 10"-14", 14"-18" or 16" 20")Fixed height:8"-16" no charge option.
- Wheels: High performance radial wheels with double wall rims and high flange hubs equipped with high pressure clincher tires and anodized aluminum pushrims are astandard. Optional Spinergy Spox wheels with black or yellow spokes are available. Other tires available include pneumatic 1-3/8" treaded as a no charge option and knobby, KIK, Kenda or flat free inserts are optional. See order form-wheel/tire chart for more details.
- Back options: Folding back is standard and fixed back is optional. Upholstery is adjustable tension w/straps as standard and fold-over style as optional. Additional options include bolt-on (fixed or adjustable ht.) or integral push handles.
- Seat height: Front seat to floor height: 16"-21" Rear seat to floor height: 14.5-21", with ergo seat option: 15"-21"
- Frame tubing: Grade 9 3-2.5 titanium in 1-1/8" tubing size.
- Frame: Custom built rigid ultra-lightweight open frame or cantilever design. Avialable in 5 front frame angles: 70,75,80,85 or 90 degrees. New ergo seat opiton provides optimum positioning, good pressure distribution and better propulsion. See additional images or on-line brochure for more details.
- Seat depth: 14"-18" standard. 19" or 20" depth optional.
- Seat width: 12"-18" standard. 19" or 20" optional. Tapered seat width is available and great for people who want their chair to disappear.
- Wheel and caster size: 22", 24" or 25" rear wheels available as standard. 26" available as an option. Front semi-pnuematic casters 4" or 5", 3" micro are standard. Softroll aluminum casters 4" or 5" are optional.
- Product weight: Complete chair from 18 pounds for a 16" wide by 16" deep chair equipped with standard HP wheels, quick release axles, 4" semi-pneumatic front casters, folding back and adjustable tnsion back and seat upholstery. See Order Form page 4 for weight calculation chart.
- Caster suspension options: Frog leg front suspension forks are available as an option.
- Warranty: Lifetime frame, one year limited parts
- Product weight capacity: 250 pounds
- Arm accessories include: removable sideguards, removable cloth sieguards with rigidizer, fixed aluminum or carbon fiber sideguard, folding aluminum or removable sideguards with fender.
- Footrest: One piece tubular footrest or an adjustable angle footplate are available as standard. Footplate covers made of carbon fiber or plastic are available as an option for the tubular footrest.
- Camber angle: Cneter of gravity adjustment is 4.25". Camber choice of 0, 3,6 or 9 degrees.
- Arm style: Swing away tubular style arms are available as an option.
- Foot space width: Footspace width for the tapered front frame is seat width minus 6" and for V style is seat width minus 5". For seat widths of 12", 13" or 14" the footrest space is 8".
